Medium Duty Lathe Machine

Medium Duty Lathe Machine
Medium Duty Lathe Machine
Send Inquiry
Product Code : M - 3
Brand Name : Arun
Product Description

Medium Duty Lathe Machine

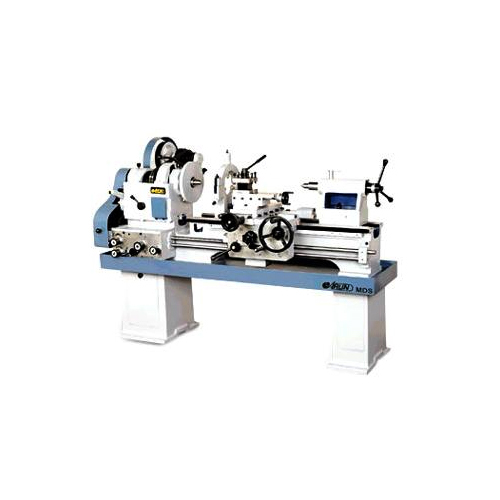

ARUN Medium Duty Lathe Machine

Standard Accessories

Chuck Back Plate, Spindle Sleeve, 2 Dead Centre, Change Gear Set, Tool Post Spenner, Switch Stand, Motor Pulley.

Extra Accessories
Steady Rest, Follow Rest, Rear Tool Post, Face Plate, Norton Gear Box, Three Speed Gear Box, Tapper Turning Attachment, Electrical Coolant Pump with Fittings, Electric Motor, True Chuck, Dog Chuck, Reversible Switch, V-Belt, Machine Lamp, (15" Apron Gear Box Available on Request)

Technical Specifications:



Details

Medium duty lathe machine
1370 MM., 1600 MM., & 1830 MM.

CAPACITY

METRIC

Height of Centre

215 mm.

Swing Over Bed

425 mm.

Swing Over Cross Slide

260 mm.

Movement of Cross Slide

250 mm.

Swing of Gap

620 mm.

BED


Bed Type

2 V & 2 Flat

Bed Width

279 mm.

Length of Gap in Bed

110 mm.

Length of Gap in Front of Face Plate

125 mm.

MAIN SPINDLE


Size of Threaded Spindle Nose

6 T.P.I. 75 mm.

Taper Bore in Spindle Sleeve

MT-4

Spindle Bore

52 mm.

TAIL STOKE


Ram Diameter

50.8 mm.

Taper Bore in Centre Sleeve

MT-4

Ram Travel

150 mm.

COMPOUND SLIDE


Travel of Compound Slide

150 mm.

Tool Shank Section

25 x 25 mm.

SPEEDS


No. of Speeds

6

Range

40 - 550 RPM

THREAD/NO. OF RANGE


Lead Screw Diameter & Pitch

31.75 mm. x 4 TPI

Metric

19/0.50 to 8.0 mm.

Inch

23/4 to 40 TPI

ELECTRICAL


Main Motor (1440 R.P.M. -AC-3 Phase)

2 H.P. / 440 V


MODEL

ADMIT BETWEEN CENTER

WEIGHT (APPROX)

FLOOR SPACE (APPROX)

M-1 1370 mm.

450 mm.

575 kg.

1650 x 970 mm.

M-2 1600 mm.

725 mm.

650 kg.

1950 x 970 mm.

M-3 1830 mm.

990 mm.

675 kg.

2100 x 970 mm.


Note
:
  • All The above specifications are approximate and subject to change without prior notice as improvements are made from time to time.
  • The Description "standard accessories / features" confirms to its list not the photo of models shown in the catalogue.
