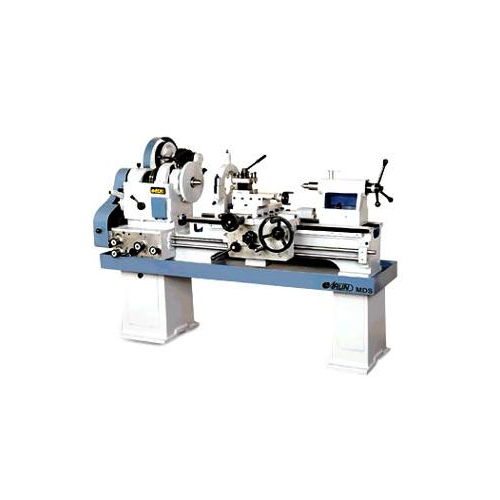

Lathe Machines

Lathe Machines
Lathe Machines
Send Inquiry
Product Code : MDS - 1
Brand Name : Arun
Product Description

Leveraging flawlessness and quality arranged methodology, we as a prominent exporter, manufacturer, and supplier have cut a particular specialty in the business by offering a variety of MDS Model Lathe Machines in India. This Light Lathe Machine is created utilizing standard quality parts to guarantee its long meeting expectations life and low support. We guarantee our presumed customers that our offered exhibit is quality tried on industry characterized parameters. Exceptionally proficient in decreasing, turning and opening inside and remotely, we profit this machine at exceedingly aggressive costs with no bother. Our array of MDS Model Lathe Machines is best acclaimed for components like easy to use, hostile to destructive body, dangerously sharp execution, and so on.

Technical Specifications:


MDS MODEL LATHE MACHINE 1600MM., 1830MM.

CAPACITY

METRIC

Height of Centre

215 mm.

Swing Over Bed

425 mm.

Swing Over Cross Slide

250 mm.

Movement of Cross Slide

280 mm.

Swing in Gap

620 mm.

BED


Bed Type

2V & 2 Flat

Bed Width

279 mm.

Length of Gap in Bed

110 mm.

Length of Gap in Front of Face Plate

125 mm.

MAIN SPINDLE


Size of Threaded Spindle Nose

6 T.P.I. 75 mm.

Taper Bore in Spindle Sleeve

MT-4

Spindle Bore

52 mm.

TAIL STOCK


Ram Diameter

50.8 mm.

Taper Bore in Centre Sleeve

MT-4

Ram Travel

150 mm.

COMPOUND SLIDE


Travel of Compound Slide

150 mm.

Tool Shank Section

25 x 25 mm.

SPEEDS


No. of Speeds

6

Range

40 - 550 RPM

THREAD/ NO. RANGE


Lead Screw Diameter & Pitch

25.4 mm. X 4 TPI

Metric

20/0.50 to 7.5 mm.

Inch

36/4 to 60 TPI

ELECTRICALS


Main Motor (1440 R.P.M.-AC-3 Phase)

2 H.P. / 440 V


MODEL

ADMIT BETWEEN CENTER

WEIGHT (APPROX.)

FLOOR SPACE (APPROX.)

MDS-1 1600 mm.

725 mm.

700 kg.

1950 x 970 mm.

MDS-2 1830 mm.

900 mm.

725 kg.

2100 x 970 mm.
