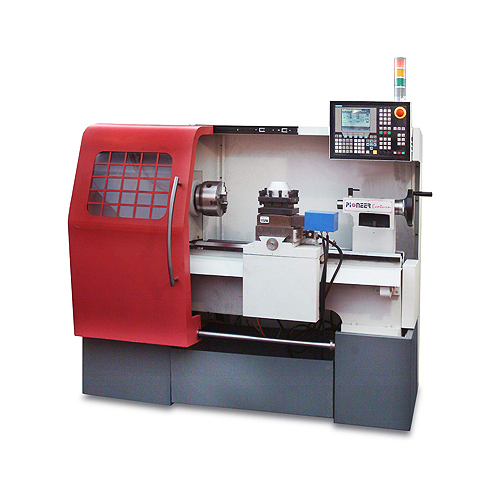

Ecoturn CNC Machine

Ecoturn CNC Machine

67000.00 INR/Unit

Product Details:

  • Product Type Machine
  • Material Stainless Steel
  • Type CNC Router
  • Power Source Electric
  • Voltage 220 Volt (v)
  • Color Other
  • Click to View more
X

Ecoturn CNC Machine Price And Quantity

  • 67000.00 INR/Unit
  • 1 Unit

Ecoturn CNC Machine Product Specifications

  • Machine
  • Stainless Steel
  • CNC Router
  • Electric
  • Other
  • 220 Volt (v)

Ecoturn CNC Machine Trade Information

  • Cash on Delivery (COD) Cash Advance (CA) Cash in Advance (CID)
  • 10 Unit Per Month
  • 6-12 Days
  • Australia South America Western Europe Middle East Africa Asia Central America Eastern Europe North America
  • All India

Product Description

We are engaged in offering Ecoturn CNC Machine, an efficient cutting tool. This machine is made up of sophisticated technology and superior components under the surveillance of experts in the same field. The operations of this tool are efficient and easy with the traits of accuracy and reliability. It is tested at each level of engineering so that it is free from any sort of defect. This dynamically designed machine is well known for its finish and smooth working and has a longer working life. It has a display and keypad for showing and feeding the required readings. The Ecoturn CNC Machine is available in various specifications as per the need.

Technical Specification :

SPECIFICATIONS

ECOTURN 215MX

ECOTURN 250MX

Description

Height of Centre(mm)

215

250

Swing Over Bed (mm)

420

490

Swing Over Cross Slide (mm)

190

260

Swing over carriage wings (mm)

250

320

Distance Between Centers (mm)

675

675

Maximum turning length

600

600

Spindle

Spindle nose / bore(mm)

A2-4 / 40 bore

A2-6 / 55 bore

Spindle taper

MT5

MT5

Speed range(rpm)

20 550, 550 2000

20 550, 550 2000

Spindle motor(kW)

2.25 kw (3HP) 3000 RPM

2.25 kw (3HP) 3000 RPM


VFD driven

VFD driven


AC indexing motor (Optional)

AC indexing motor (Optional)

TAILSTOCK

Type

Manual

Manual

Quill diameter

50.8

50.8

Quill stroke

180

180

Quill taper

MT-3

MT-3

Tool post

4 way electro mechanical vertical

4 way electro mechanical vertical

AXIS

X-axis stroke(mm)

245

245

Z-axis stroke(mm)

690

690

X-axis rapid feed(m/min)

8

8

Z-axis rapid feed(m/min)

10

10

Axis motor

AC Servo

AC Servo

Machine Weight(kgs)

1700 (Approx)

1750 (Approx)

Machine dimensions (L x W x H)

2100 x 1100 x 1650 (Approx)

2100 x 1100 x 1700 (Approx)

CNC System

Sinumerik 802C



FANUC - 0i mate (Optional)

FANUC - 0i mate (Optional)



CNC System: Fanuc 0i TC
  • Manual Data Input
  • simultaneously controllable 2axes
  • Part program storage & editing
  • Tool nose radius compensation
  • Self diagnostics
  • Constant surface speed control
  • Multiple repetitive cycles
  • Thread cutting cycles
  • Feed rate override
  • Circular interpolation
  • Direct drawing dimension programming
  • Absolute / incremental programming
  • Tape punch interface (RS 232 port)
  • Program memory 640 meters of tape - 356k
  • Backlash compensation
  • Background editing
  • Inch / metric switchable
  • Dynamic graphics
  • Front PCMCIA port
