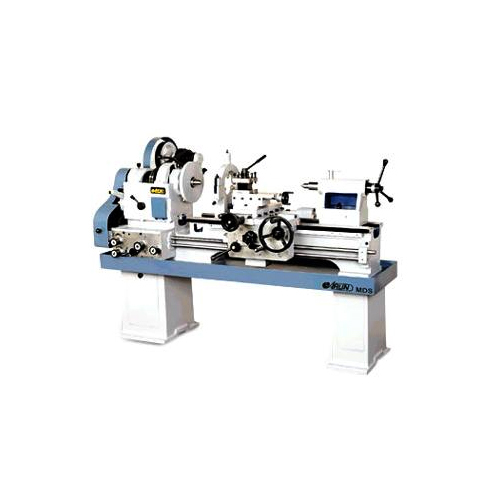

Automatic Lathe Machines

Name: Automatic Lathe Machines
Brand: NUTECH MECHATRONICS PVT. LTD.
Price: 670000 INR
Availability: InStock

Price 670000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Lathe Machines Specification

Product Type

Material
Steeliness Steel

Voltage
220-240 Volt (v)

Color
Green

Automatic Lathe Machines Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
6-12 Days

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Africa, Western Europe, Central America, South America, Asia

Main Domestic Market
All India

About Automatic Lathe Machines

Leveraging flawlessness and quality arranged methodology, we as a prominent exporter, manufacturer, and supplier have cut a particular specialty in the business by offering a variety of MDS Model Lathe Machines in India. This Light Lathe Machine is created utilizing standard quality parts to guarantee its long meeting expectations life and low support. We guarantee our presumed customers that our offered exhibit is quality tried on industry characterized parameters. Exceptionally proficient in decreasing, turning and opening inside and remotely, we profit this machine at exceedingly aggressive costs with no bother. Our array of MDS Model Lathe Machines is best acclaimed for components like easy to use, hostile to destructive body, dangerously sharp execution, and so on.

Technical Specifications:

	MDS MODEL LATHE MACHINE 1600MM., 1830MM.
CAPACITY	METRIC
Height of Centre	215 mm.
Swing Over Bed	425 mm.
Swing Over Cross Slide	250 mm.
Movement of Cross Slide	280 mm.
Swing in Gap	620 mm.
BED
Bed Type	2V & 2 Flat
Bed Width	279 mm.
Length of Gap in Bed	110 mm.
Length of Gap in Front of Face Plate	125 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose	6 T.P.I. 75 mm.
Taper Bore in Spindle Sleeve	MT-4
Spindle Bore	52 mm.
TAIL STOCK
Ram Diameter	50.8 mm.
Taper Bore in Centre Sleeve	MT-4
Ram Travel	150 mm.
COMPOUND SLIDE
Travel of Compound Slide	150 mm.
Tool Shank Section	25 x 25 mm.
SPEEDS
No. of Speeds	6
Range	40 - 550 RPM
THREAD/ NO. RANGE
Lead Screw Diameter & Pitch	25.4 mm. X 4 TPI
Metric	20/0.50 to 7.5 mm.
Inch	36/4 to 60 TPI
ELECTRICALS
Main Motor (1440 R.P.M.-AC-3 Phase)	2 H.P. / 440 V

MODEL	ADMIT BETWEEN CENTER	WEIGHT (APPROX.)	FLOOR SPACE (APPROX.)
MDS-1 1600 mm.	725 mm.	700 kg.	1950 x 970 mm.
MDS-2 1830 mm.	900 mm.	725 kg.	2100 x 970 mm.
