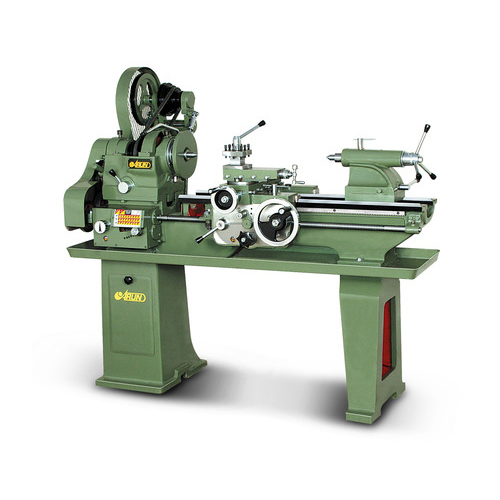

Automatic Light Duty Lathe Machine

LIGHT DUTY GEAR LATHE MACHINE 1370MM, 1600MM, & 1830 MM

CAPACITY

METRIC

Height of Centre

165 mm.

Swing Over Bed

325 mm.

Swing Over Cross Slide

180 mm.

Movement of Cross Slide

225 mm.

Swing in Gap

500 mm.

BED

Bed Type

2V & 2 Flat

Bed Width

238 mm.

Length of Gap in Bed

110 mm.

Length of Gap in Front of Face Plate

125 mm.

MAIN SPINDLE

Size of Threaded Spindle Nose

8 T.P.I. 60 mm.

Taper Bore in Spindle Sleeve

MT-3

Spindle Bore

40 mm.

TAIL STOCK

Ram Diameter

38.1 mm.

Taper Bore in Centre Sleeve

MT-3

Ram Travel

115 mm.

COMPOUND SLIDE

Travel of Compound Slide

120 mm.

Tool Shank Section

22 x 22 mm.

SPEEDS

No. of Speeds

8

Range

35-825 RPM

THREAD/ NO. RANGE

Lead Screw Diameter & Pitch

25.4 mm. X 4 TPI

Metric

19/0.50 to 8.0 mm.

Inch

23/4 to 40 TPI

ELECTRICALS

Main Motor (1440 R.P.M.-AC-3 Phase)

1 H.P. / 440 V
